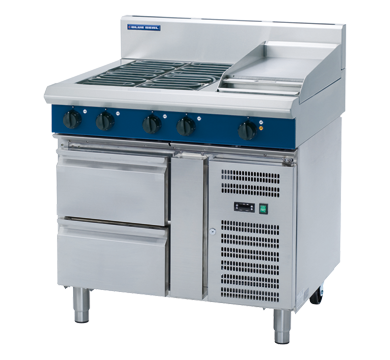

Blue Seal Evolution E516C-RB 4 Element Electric Cooktop with Griddle on Refrigerated Base

Product Details

External Dimensions: 900mm W x 812mm D x 1085mm H (including splashback)

4x 2.4 kW Open Radiant elements and 3.4kW Griddle element

Electrical Requirements (Top): 13 kW, 400-415Vac, 50/60hz, 3P+N+E, 20A/phase max

Electrical Connection for Refrigerated Base: 220-240Vac, 50Hz, 1.8A, 1P+N+E 3 pin 13A plug cordset fitted

Heavy-duty construction

Stainless steel exterior

Easy clean

Easy service

Fully modular

Stainless steel exterior and interior

2x 1/1 GN Drawers

-2°C to +8°C temperature (Tropical Climate rated)

100mm deep pan capacity

Ventilated system with R134a refrigerant

Heavy-duty European telescopic drawer guides

Magnetic drawer gaskets (replaceable without tools)

50mm fully foamed CFC free insulation

Anti-corrosion treated evaporator

No condensate drain required

63mm dia. heavy-duty 1.2mm stainless steel legs with adjustable feet

Condensing unit removable through front of unit for service

Easy clean interior

Machined finish smooth griddle plate supplied as standard. Other options are available - please contact us for details

1 Year Warranty

Must be installed by a fully qualified engineer

PLEASE NOTE THAT THE STYLE OF THE REFRIGERATED BASE HAS NOW CHANGED

Please note that all products are shipped directly from the manufacturer / supplier so contact us if you wish to check on stock availability.

THIS IS A COMMERCIAL PRODUCT INTENDED FOR USE ON A COMMERCIAL SITE. WARRANTY TERMS MAY BE AFFECTED IF USED IN A NON-COMMERCIAL ENVIRONMENT. B2B (BUSINESS TO BUSINESS) TERMS APPLY.

Downloads

E516 Specification Sheet
