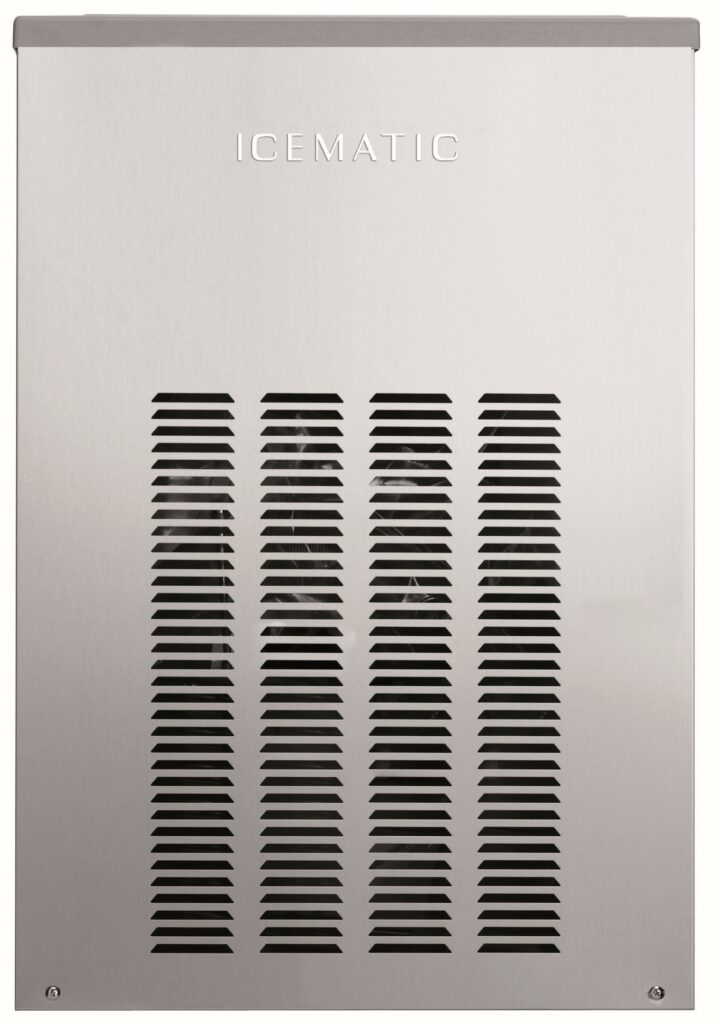

Icematic G270 F Modular Nugget Ice Maker

Product Details

External Dimensions: 540mm W x 665mm D x 645mm H

Standard Voltage: 220-240V/1N/50Hz

Production per 24hr*: G270 F A (R452a Refrigerant; Air Cooled): 320kg / G270 F W (R452a Refrigerant; Water Cooled): 305kg

Compatible with Icematic bins: MG105 (with adaptor cover), MG155 (with adaptor cover), MG205 (with adaptor cover), MG255 (with adaptor cover), MG305 (with adaptor cover), MG405 (with adaptor cover), MG505 (with adaptor cover)

Models: G270 F A (R452a Refrigerant, Air Cooled) / G270 F W (R452a Refrigerant, Water Cooled)

Ice Type: 11mm x 13mm; specific weight 1g, approximately 8& water content (see image for shape)

Grape Series

Stainless steel bodyshell

Front-facing air intake and outlet

Easy management of the ice

Only 8% residular water on ice

Compatibility with Icematic bins

Please note that it does not come with a UK 13amp plug

Optional extra: Ozone Santitization - please contact us for details

2 Years Parts Only Warranty

Grape Series: The range of icemakers “nugget” type is based on two models, with different production capacities, to be combined with a separate bin. The “nugget” type ice is created via a vertical and cylindrical evaporator, equipped with a screw-conveyor, that  scrapes the internal surface of the ice pulling it to the outlet of the machine, where an extruder presses the ice into small cylinders. These machines to be paired to the vast selection of Icematic bins.

The Ice: Nuggets-shaped has the features of being both compact and pleasant to chew, being half-way between granular ice and solid ice cubes. It is the ideal ice for the creation of cocktails where crunched ice is needed as caipirinhas, mojitos or caipiroskas. Nuggets format ice has a low water contain and may be used in many spaces as: cocktails-bars, disco-clubs, professional catering and restaurants, centralized kitchens and the medical sector as well.

*Specifications as per 2024 brochure.

Imported from Italy so please check for availability and lead time

*MUST BE INSTALLED BY A FULLY QUALIFIED REFRIGERATION ENGINEER.

THIS IS A COMMERCIAL PRODUCT INTENDED FOR USE ON A COMMERCIAL SITE. WARRANTY TERMS MAY BE AFFECTED IF USED IN A NON-COMMERCIAL ENVIRONMENT. B2B (BUSINESS TO BUSINESS) TERMS APPLY.

Downloads

G270 F Spec. Sheet
